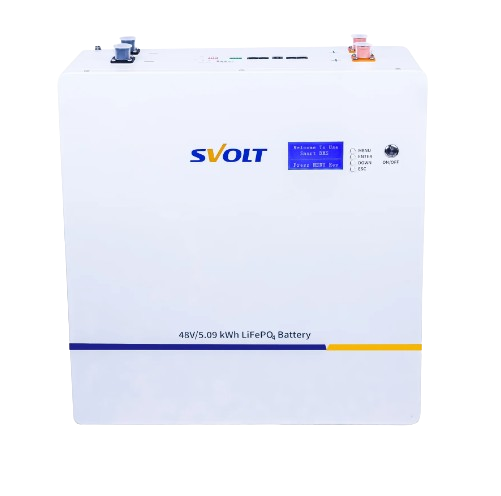

100ah 48V Lithium Battery

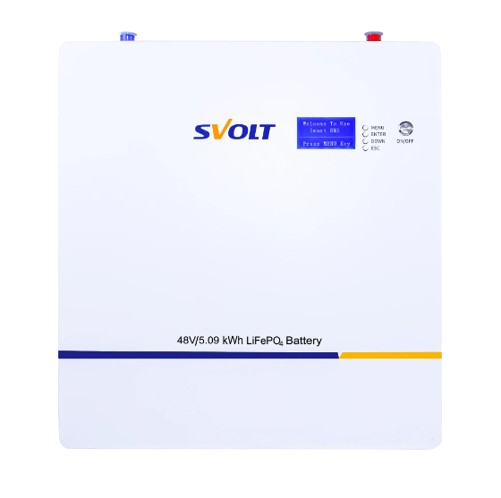

100ah 48V Lithium Battery - Image 2

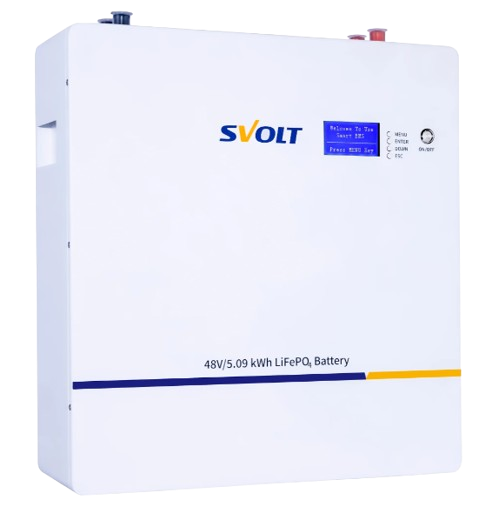

100ah 48V Lithium Battery - Image 3

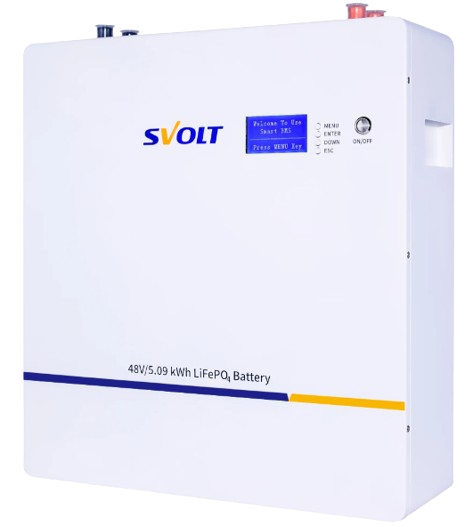

100ah 48V Lithium Battery - Image 4

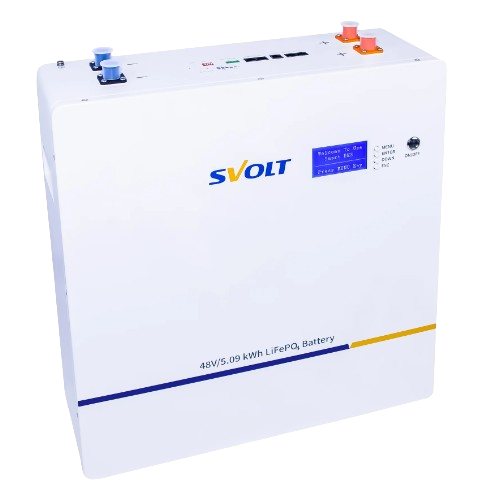

100ah 48V Lithium Battery - Image 5

100ah 48V Lithium Battery

R17298,00

100ah 48V Lithium Battery

SKU: SVLT-48-100 Categories: , , , , , , Tags: ,

Description

The SVOLT 48V 106Ah A-Grade Lithium Battery (S-Type) is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

The SVOLT 48V 106Ah A-Grade Lithium Battery (S-Type) is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.

Additional information

Weight 49 kg
Dimensions 48 × 17 × 51 cm
Energy

5.04kWh
Battery Type-Chemistry

LiFePO4
Nominal Voltage

48V
Nominal Capacity

106Ah
Energy Density

5088Wh
Rated Energy

5.09kWh
Terminal Type

Fast Plug In & Plug Out
Case Material

SPCC
BMS Built-in

Yes
LCD Screen

Yes
Internal Resistance

<30mΩ
Efficiency - Round Trip

>99%
Self Discharge per Month

<3%
Max Parallel Connectors

16Pcs
Series Connections

Not Allowed
Cycle Life(0.2C, 25°C @ 80% DOD)

>6000 Cycles
Discharge Temperature

-20°C to 65°C
Charge Temperature

0°C to 50°C
Storage Temperature

-10°C to 30°C
Voltage Window

40.5V – 54.75V
Recommended Charge Voltage

54 ±0.20V
Max Charge Voltage

54.75±0.20V
Recommended Charge Current

50A
Max Continuous Charge Current

100A
Recommended Discharge Voltage

42 ±0.20V
Max Discharging Voltage

40.5 ±0.20V
Max Continuous Discharge Current

100A
Peak Discharge Current

150A
Dimensions

L47.5 x W17 x H51 (cm)
Weight

49kgs
